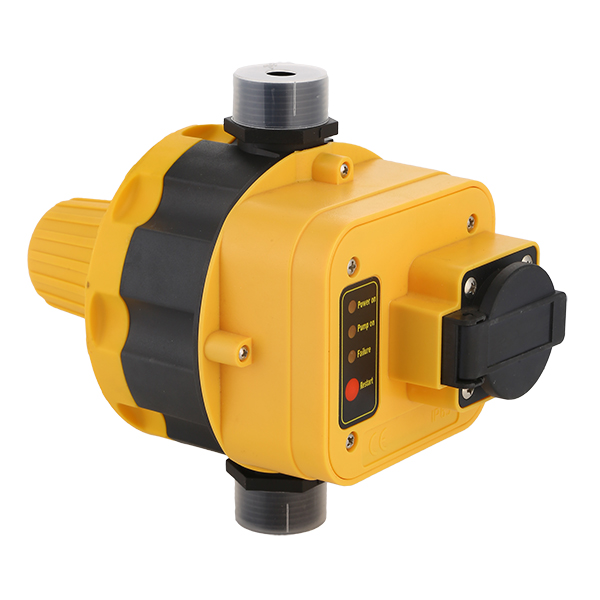

Sk-18
Rated voltage/Frequency:  110V-120V/220-240V
Max Power: 1.1kw, 1.5kw
Frequency: 50/60HZ
Max. Current: 10A
Starting pressure setting:  1.2bar,1.5bar,2.2bar
Max. Working pressure:  10bar
Connection thread:  G1"
Protection rating: IP65
Max. Working temperature: 60°C



Feedback

FUNCTIONS

1. Start and stop the pump automatically
2. Protect the pump from damage caused by dry-running


DESCRIPTIONS

   This automatic pumpo control is mainly used in household for controlling the running of pump. Joint screw:G1"male

1.It start the electric pump automatically after a pressure decrease(taps opening)and stops it when the fluid flow interrupts at the maximum pressure level of the electric
pump(taps closed),keep the household water supply system in water supply state with a constant pressure.
2.Protect the pump,in the case of water shortage or jam, it is able to indentify these fault and at the same time stop the pump
